Oversized product

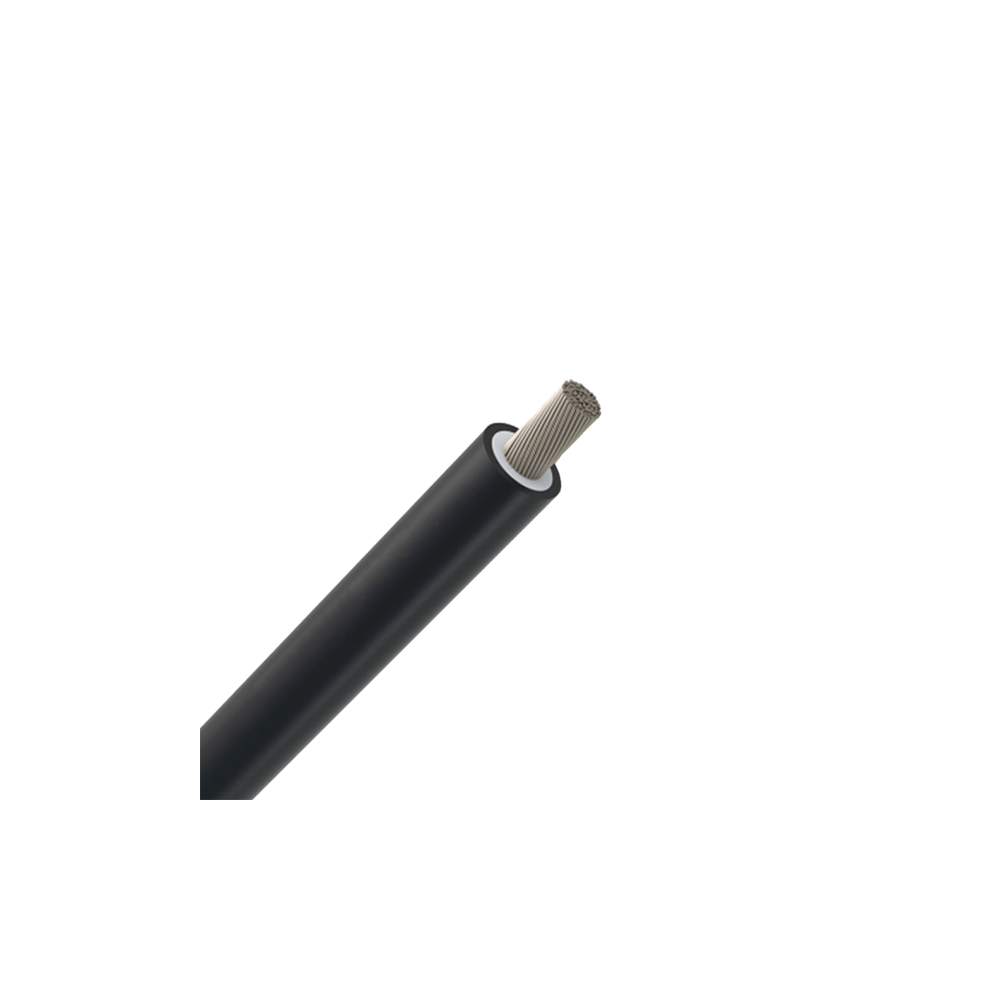

Solar cable H1Z2Z2-K 0.6/1kV 1x4.00mm2 black

Name: Solar cable H1Z2Z2-K 0.6/1kV 1x4.00mm2 black
Brand: ELMARK
SKU: M411079/BL
Price: 0.92 EUR
Availability: InStock

In stock (see where)

SKU: M411079/BL

Available in stock: 20737 - the delivery time is 3 to 5 days.

For orders over stock - the delivery time is from 30 to 40 days.

0,92 €

(MTR) Price VAT included

Oversized product *

Delivery options

oversized product!
Pick up from Service Center: FREE
When delivered to address by courier: 23€/44.98lv.
Free delivery to address for orders over 1000€/1955,70 lv.

- +

Characteristics

Color

Black

Fire resistance

Dca S1a, d2, a1/EN 60332-1-2/250°C/5sec. (max.)

Number of cores

Section of the conductor

4mm²

Rated voltage

АС 1,0/1,0 kV; DC 1,5/1,5 kV

Number of conductros

50x0,30mm

Insulation

Diameter/Thickness: 3.9mm/0.7mm

Resistance

Conductor: 5,09Ω/km, Insulation: 580МΩ/km

Type of material

Conductor: Tinned copper Class 5/Insulation: Halogen-free compound

Roll length

100m

Outer diameter

5.6mm

Temperature range

-40°C +90°C

Warranty

5+2 years

Total weight (kg/km)

Product category

Brand

ELMARK

Description

APPLICATION

They are specifically designed for the construction of photovoltage systems. H1Z2Z2-K solar cables have good wear resistance, extreme flexibility, UV protection and do not support combustion. They are also halogen-free, water and oil resistant.

• Minimum bending radius during laying: 5xØ of cable

CERTIFICATION

• Declaration of performance (DoP)

• TUV Certificate

• CE and EN Certificates

We have included black and red solar cable H1Z2Z2-K with a cross section of 4mm2 to all our solar kits. You can see the quantities in the table below:

Catalogue number	3.6 kW	5 kW	10 kW	15 kW	20 kW	30 kW
M411079/BL	x50m	x50m	x50m	x75m	x100m	x100m
M411079/R	x50m	x50m	x50m	x75m	x100m	x100m
