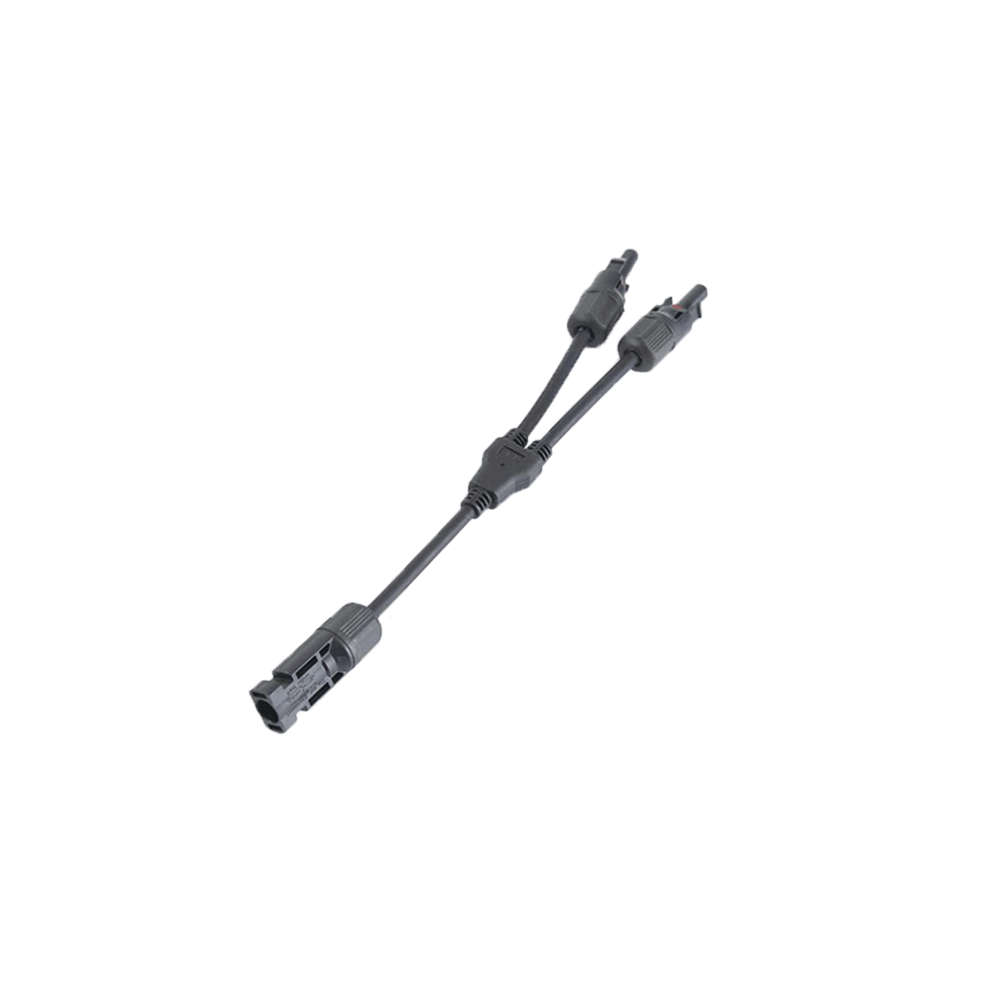

Y-Triple connector 1500V MC4 4-6mm 1 female/2 male
In stock
(see where)
SKU: 411080/MY
Available in stock: 217 - the delivery time is 1 to 2 days.
For orders over stock - the delivery time is from 30 to 40 days.
-20%
(PCS)
Price VAT included
€2.01
€2.51
-
+
Characteristics
Material
Conductive part: Copper alloy, tin plated
Type Product
2 male/ 1 female coupler
Rated voltage
1500V(Test voltage: 6kV 50Hz)
Rated current(A)
30A
Section of the conductor
4-6mm²
Suitable For
Solar cables: 2.5/4/6mm2 and cable grands: 3-6mm
Temperature range
-40°C +90°C
Dimensions (L × W × H)
-
Total length
300mm
IP code
IP67
Warranty
2 years
Product category
C
Brand
ELMARK
Description
APPLICATION
They are an important and indispensable element of any modern solar installation, serving for easier and faster wiring of the solar array. They are available in both male and female versions, and are compatible with the well-established MC4 connection standard.
EC Declaration of conformity
These products meet all the technical requirements set by the European Union for the construction of solar systems.
