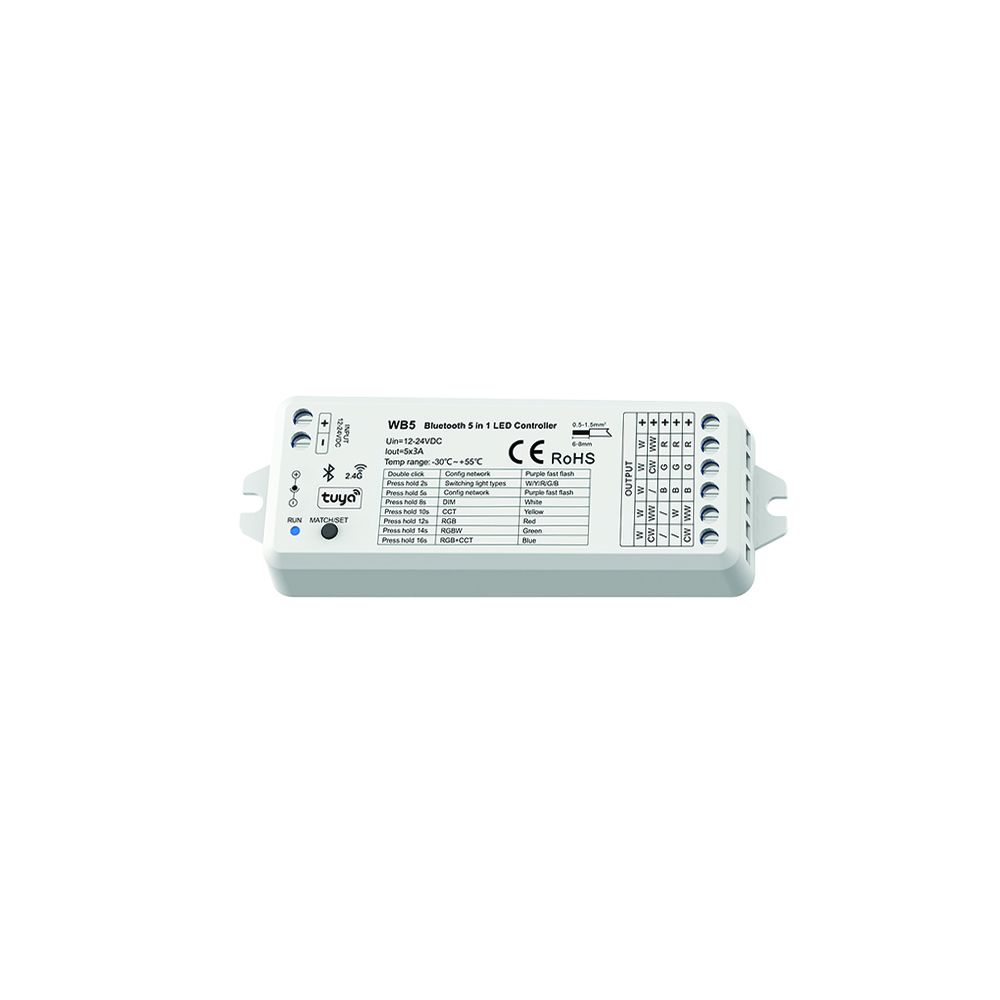

WB5 5 CHANNELS BLUETOOTH&RF CONTROLLER

FEATURES:
• 5 in 1 function, used for control RGB, RGBW, RGB+CCT, color temperature or single color LED strip.
• DC power socket input and 5 channel constant voltage output
• Tuya smart APP cloud control, support on/off, RGB color, color temperature and brightness adjust,
delay turn on/off light,timer run, scene edit and music play function.
• Voice control, support for Amazon Alexa, Google Assistant, Tmall Genie and Xiaodu voice assistant.
• Match with RF 2.4G remote control optional.
• User need set light type by press key before Tuya APP network connection and match RF remote of
the same light type.
• Each WB5 controller can also work as Bluetooth-RF converter, then use Tuya smart APP to control
one or more RF LED controller or RF LED dimming driver synchronously.
• Light on/off fade time 3s selectable

TECHNICAL DATA
• Input voltage: 12-24V DC
• Output voltage: 5 x (12-24)V DC
• Output current: 5 x 3A
• Output power: 5 x (36-72W)
• Output type: Constant voltage
• Input signal: Bluetooth (Tuya APP) + RF 2.4GHz
(Remote control)
• Control distance: 30m (Barrier-free space)

• Dimming level: 4096 (2^12) levels
• Dimming range: 0-100%
• Dimming curve: Logarithmic
• PWM Frequency: 1000Hz (default)
• Operation temperature: from -30°C to +55°C
• IP degree: IP20
• Size (LxWxH): 120x43x27mm
• Weight: 55gr

PROTECTION

• Reverse polarity
• Over-heat
• Short circuit
