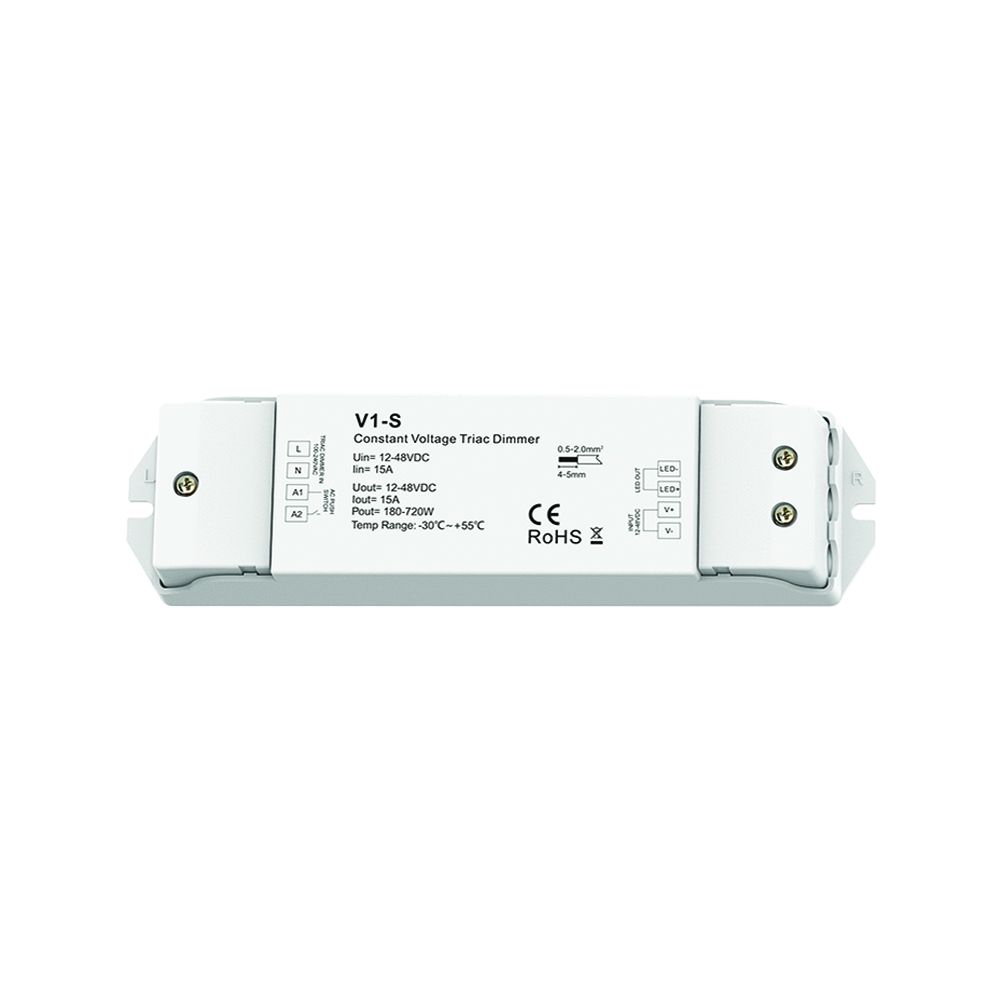

V1-S 1 CHANNEL TRIAC RF DIMMER FOR DISTR. BOX
Available in stock: 30 - the delivery time is 1 to 2 days.
FEATURES:
• Triac dimming, input AC100V-240V dimming signal
• Apply to leading edge/trailing edge Triac dimmers and dimming system.
• One channel PWM constant voltage output, output current 15A max.
• PWM digital dimming, logarithmic dimming curve.
• Reverse-phase dimming or forward-phase dimming selectable.
• Over current protection, short circuit protection, over temperature protection
• Connect with external AC push switch to achieve on/off and dimming function.
TECHNICAL DATA
• Input voltage: 12-48V DC
• Output voltage: 12-48V DC
• Output current: 1 x 15A
• Output power: 1 x (180-720W)
• Input signal: 100-240V AC + AC Push-Dim
• Dimming range: 0-100%
• Dimming curve: Logarithmic
• PWM Frequency: 500Hz (default)
• Operation temperature: from -30°C to +55°C
• IP degree: IP20
• Size (LxWxH): 178x50x38mm
• Weight: 126gr
PROTECTION
• Reverce polarity
• Over-heat
• Over current
• Short circuit
