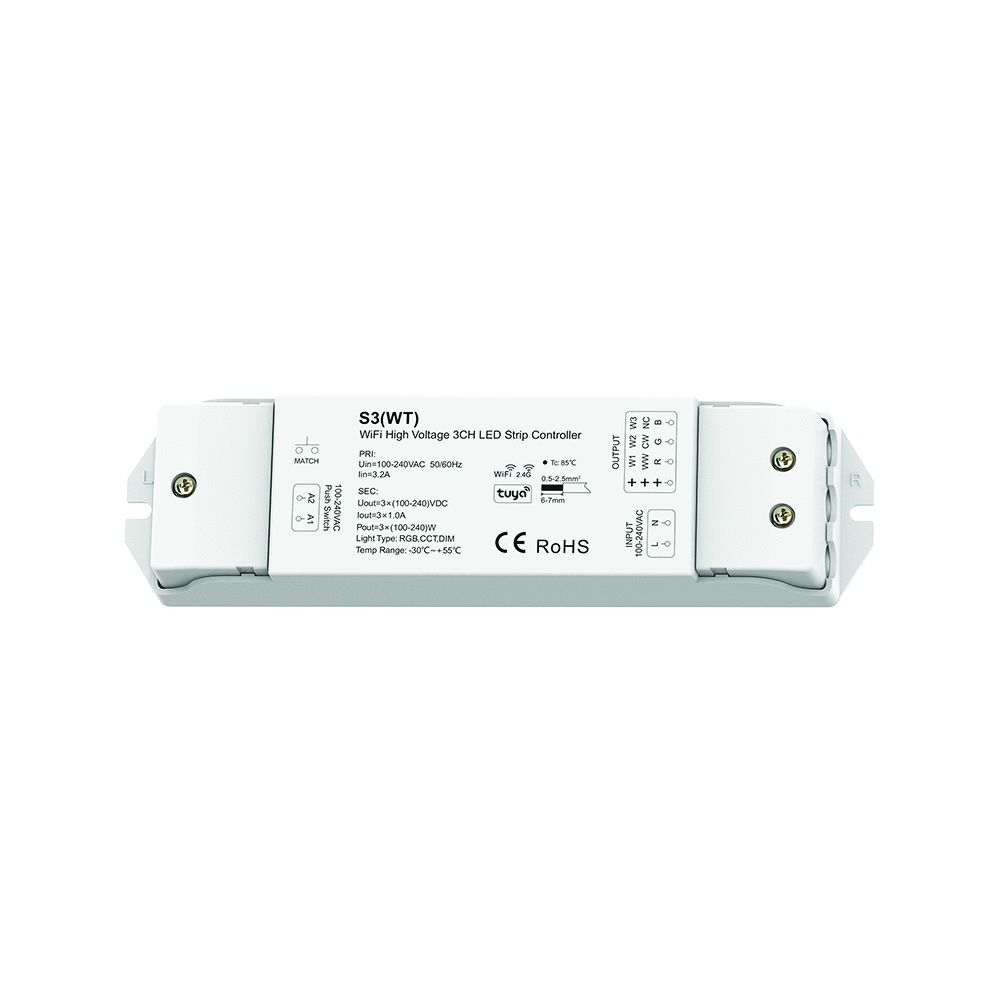

S3(WT) 3 CHANNELS TUYA&RF CONTROLLER
Available in stock: 30 - the delivery time is 1 to 2 days.
FEATURES:
• 3 channel high voltage LED strip controller, can control maximum about 50 meters of high voltage
LED strip, different LED strip may have difference.
• 3 in 1 function, used for control RGB, color temperature or single color LED strip.
• Tuya APP cloud control, support on/off, RGB color, color temperature and brightness adjust, delay
turn on/off light, timer run, scene edit and music play function.
• Voice control, support for Amazon Alexa, Google Assistant, Tmall Genie and Xiaodu smart speakers.
• Match with RF 2.4G remote control optional.
• User need set light type by press key before Tuya APP network connection and match RF remote of
the same light type.
• Each S3(WT) controller can also work as WiFi-RF converter, then use Tuya APP to control one or more
RF LED controller or RF LED dimming driver synchronously.
• Light on/off fade time 3s selectable
• Connect with external push switch to achieve on/off and 0-100% dimming function
TECHNICAL DATA
• Input voltage: 100-240V AC
• Output voltage: 100-240V AC
• Output current: 3 x 1A
• Output power: 3 x (100-240W)
• Input signal: Wi-Fi (Tuya APP) + RF 2.4GHz (Remote
control) + Push Dim
• Control distance: 30m (Barrier-free space)
• Dimming level: 4096 (2^12) levels
• Dimming range: 0-100%
• PWM Frequency: 2kHz
• Operation temperature: from -30°C to +55°C
• IP degree: IP20
• Size (LxWxH): 178x150x38mm
• Weight: 136gr
