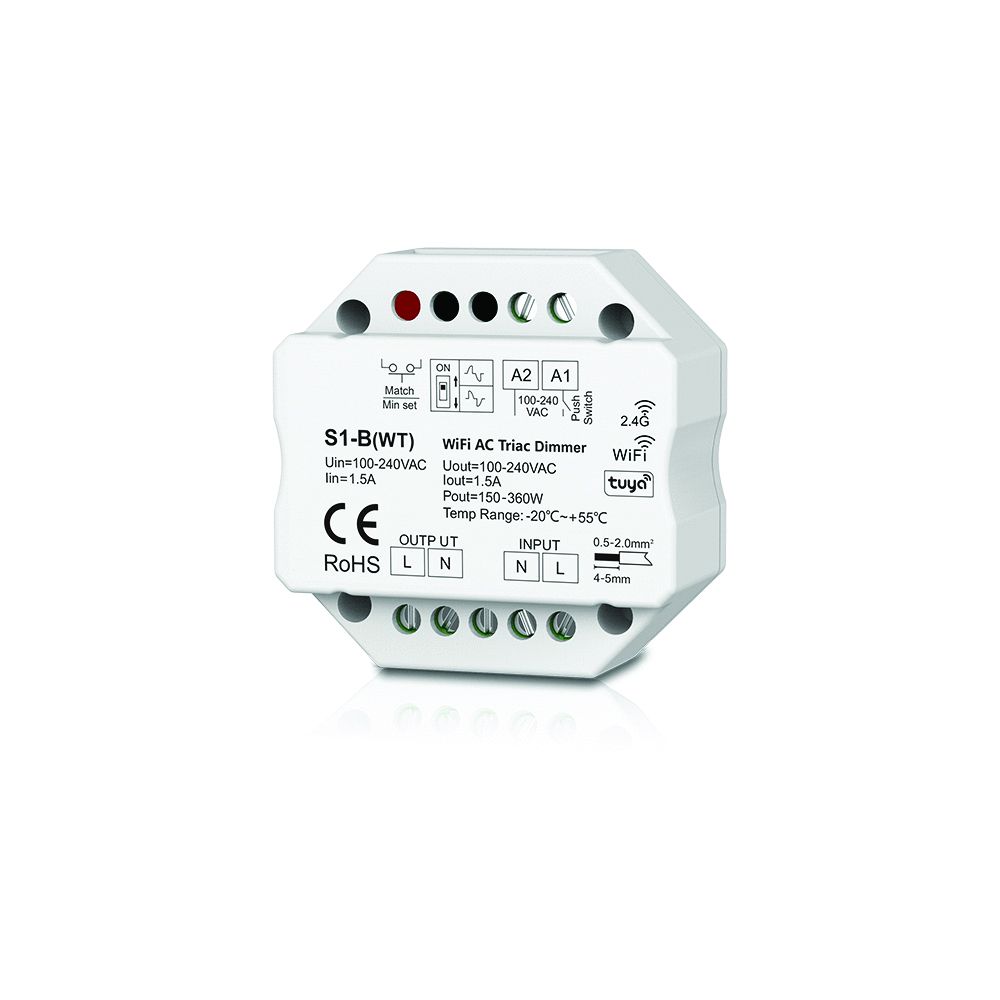

S1-B(WT) 1 CHANNEL TUYA&RF TRIAC DIMMER FOR BOX
Available in stock: 30 - the delivery time is 1 to 2 days.
FEATURES
• WiFi + RF + Push AC phase-cut dimmer, 1 channel output.
• To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
• Easy to be placed in standard wall junction box behind a push switch.
• Tuya smart APP cloud control, support on/off, brightness adjust, delay turn on/off light, timer run, scene function.
• Voice control, support for Amazon Alexa, Google Assistant, Tmall Genie and Xiaodu voice assistant.
• 256 levels 0-100% dimming smoothly without any flash.
• Leading edge dimming or trailing edge dimming set by dip switch.
• Min. brightness can be set by key.
• Compatibility with RF 2.4G single zone or multiple zone dimming remote control.
• Light on/off fade time 3s selectable
• Each S1-B(WT) controller can also work as WiFi-RF converter, then use Tuya smart APP to control one or more RF dimming LED controller or driver synchronously.
• Connect with external push switch to achieve on/off and 0-100% dimming function.
TECHNICAL DATA
• Input voltage: 100-240V AC
• Output voltage: 100-240V AC
• Output current: 1 x 1,5A
• Output power: 1 x (150-360W)
• Input signal: Wi-Fi (Tuya APP) + RF 2.4GHz (Remote control) + Push Dim
• Control distance: 30m (Barrier-free space)
• Dimming level: 256 levels
• Dimming range: 0-100%
• Operation temperature: from -30°C to +55°C
• IP degree: IP20
• Size (LxWxH): 160x60x40mm
• Weight: 61gr
PROTECTION
• Over-load
• Over-heat
