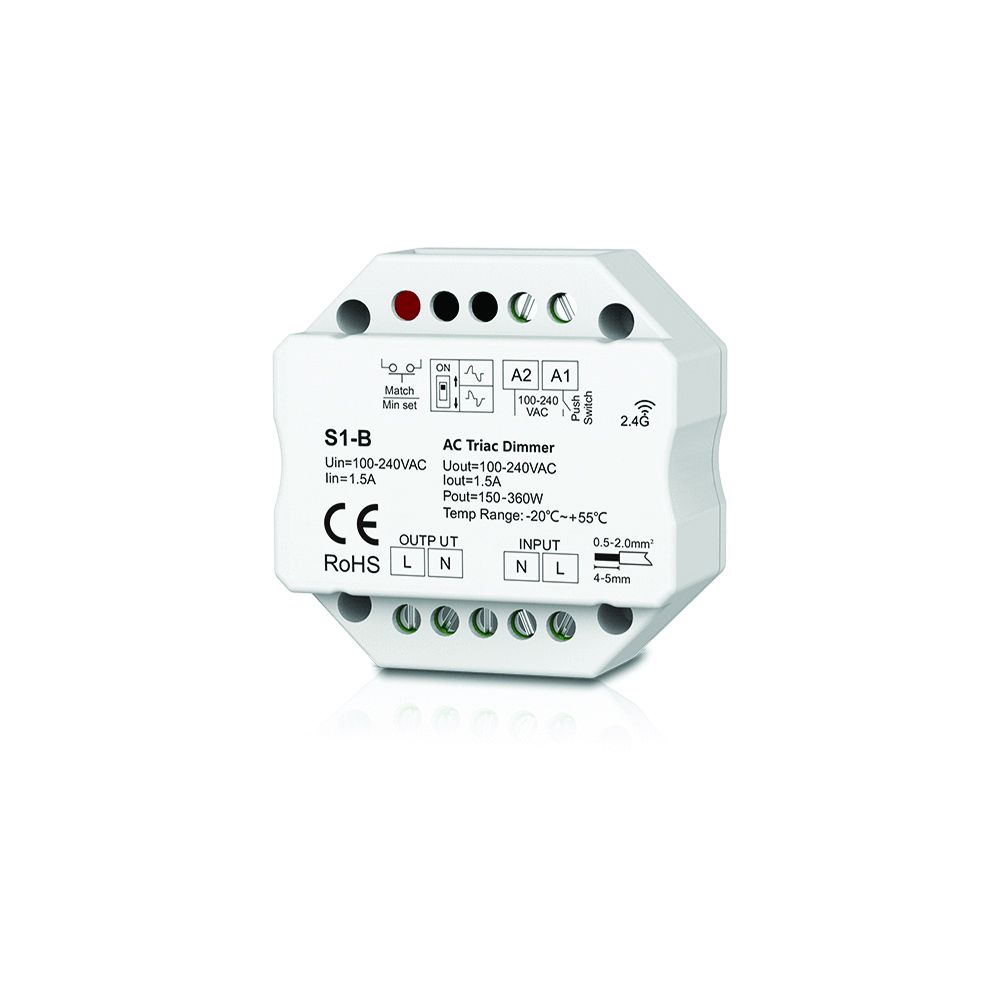

S1-B 1 CHANNEL AC TRIAC RF DIMMER FOR DISTR. BOX
Available in stock: 30 - the delivery time is 1 to 2 days.
FEATURES:
• RF + Push AC phase-cut dimmer, 1 channel output.
• To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
• 256 levels 0-100% dimming smoothly without any flash.
• Leading edge dimming or trailing edge dimming set by dip switch.
• Min. brightness can be set by key.
• Compatibility with RF 2.4G single zone or multiple zone dimming remote control.
• Light on/off fade time 3s selectable
• Connect with external push switch to achieve on/off and 0-100% dimming function.
TECHNICAL DATA
• Input voltage: 100-240V AC
• Output voltage: 100-240V AC
• Output current: 1 x 1,5A
• Output power: 1 x (150-360W)
• Input signal: RF 2.4GHz (Remote control) + Push Dim
• Control distance: 30m (Barrier-free space)
• Dimming level: 256 levels
• Dimming range: 0-100%
• Operation temperature: from -20°C to +55°C
• IP degree: IP20
• Size (LxWxH): 160x60x40mm
• Weight: 61gr
PROTECTION
• Over-load
• Over-heat
