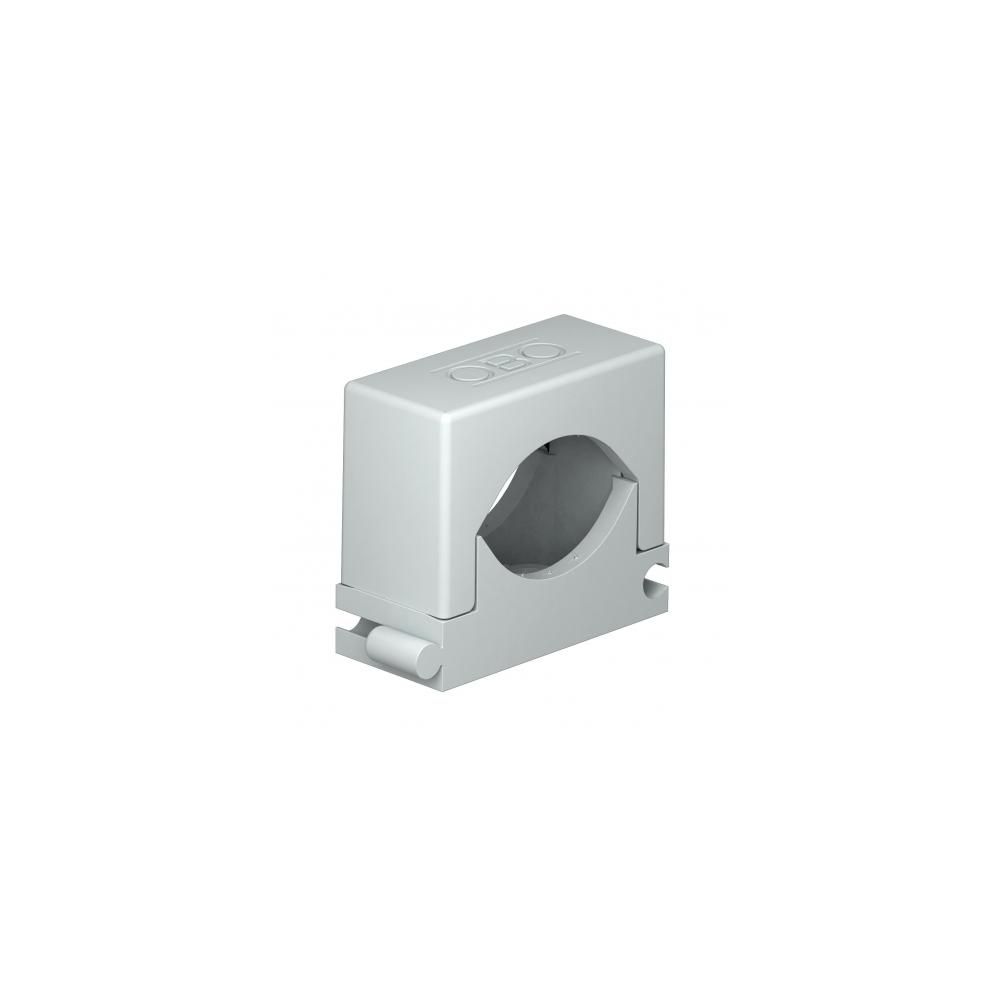

OBO LGR 6-13 CABLE CLAMP

Universal clamp for single fastening of cables, wires, and pipes; with the possibility for sequential arrangement for all sizes; with a base for gluing, an elongated hole, and the option to screw onto an M6 thread.

For gluing to walls and concrete using "impu-Fix" type 509 instant adhesive.

*Sizes 3-7 are not suitable for installation with a gun.

CO2 footprint (GWP) from cradle to gate: 0.0178 kg CO₂e / 1 piece
Halogen-free: yes
Number of cables/pipes: 1
Type of fastening: Bolt through hole
Material: Polyamide
Clamping range D max.: 13 mm
Clamping range D min.: 6 mm
Dimension d min.: 6 mm
Dimension A: 20 mm
Dimension d max.: 13 mm
Dimension F: 13 mm
Dimension H1: 8.5 mm
Dimension H2: 20 mm
Dimension H3: 27 mm
Dimensions: 6–13 mm
Stackable: yes
Impact resistant: no
Color: light gray; RAL 7035
