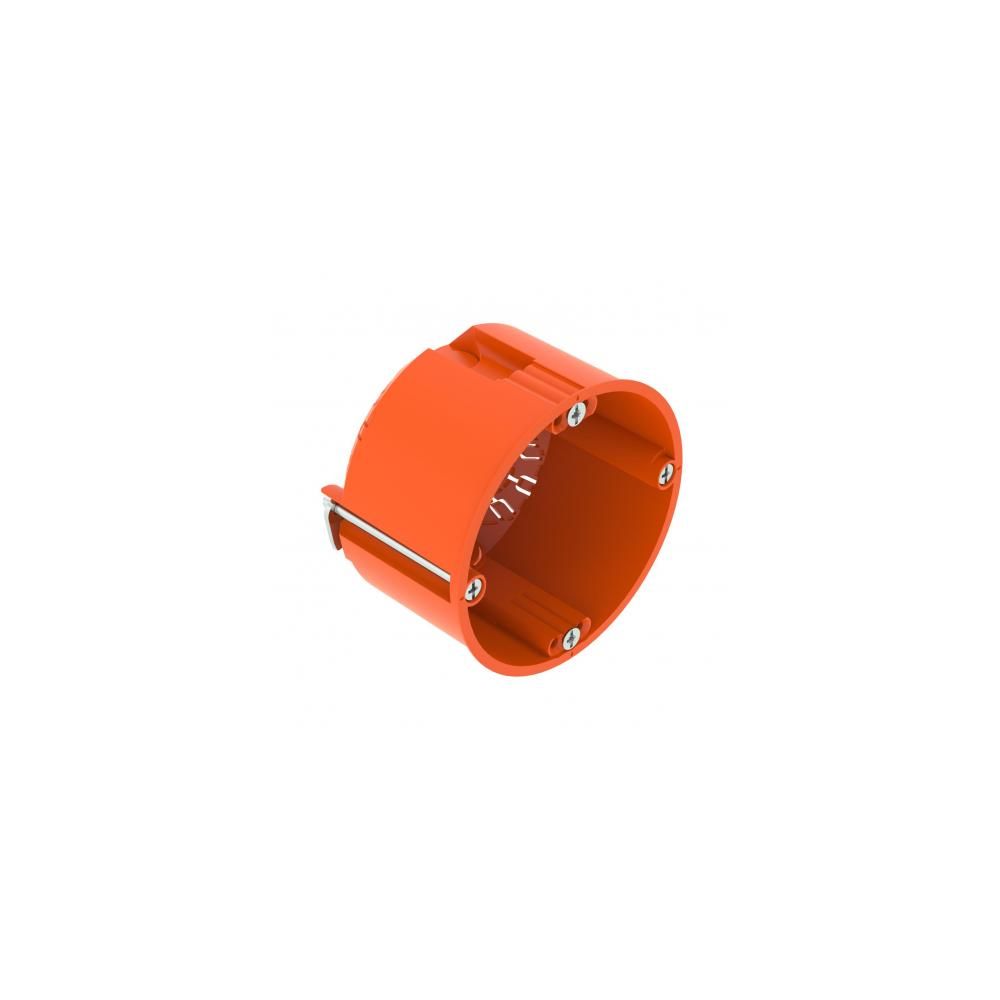

OBO HG 47 BOX FOR DRYWALL F68/H47mm

Socket mounting box for installation in hollow walls, minimum mounting depth 47 mm, panel thickness 5 – 40 mm.

• 2 x 3 screw holes

• Screws for sockets, terminal strips

• 2 combined openings for pipes Ø 20 and 25 mm

• 2 openings for NYM cables 3 x 1.5 mm²

• 2 openings for NYM cables 3 x 2.5 mm² or 5 x 1.5 mm²

• Connecting elements type ZH 11-V for linking individual socket mounting boxes

Delivery includes 10 connecting elements type ZH 11-V.

According to DIN 60670-1, DIN 60670-22 and DIN 49073-1.

CO₂ footprint (GWP) from cradle to gate: 0.0768 kg CO₂e / per unit
Hermetic: No
Halogen-free: Yes
Number of cable entry openings: 6
Number of inserts: 1
Type of incoming cables: NYM wires, data transmission wires, and corrugated pipes
Type of box entry element: Knockout opening
Height: 47 mm
Entries for wires 3 x 1.5 mm²: 2
Entries for wires 3 x 2.5 mm² / 5 x 1.5 mm²: 2
Entries for low voltage wires: 2
Diameter: 68 mm
For pipe diameter: 20/25 mm
Cover fastening: Screw material
Socket fastening: Screw material
Milling hole diameter: 68 mm
Covers: No
Combined entries Ø 20/25 mm: 2
Material: Polypropylene
Non-flame propagating material: VDE 0471 / IEC 60695-2-11, test temperature 850°C
Maximum nominal cross-section: 2.5 mm²
Minimum nominal cross-section: 1.5 mm²
Operating voltage: 400 V
Supports: Connecting elements
Application for panel thickness max.: 40 mm
Application for panel thickness min.: 5 mm
Dimensions: Ø68 mm, H47 mm
With screws: Yes
Degree of protection: IP30
Impact resistant: Yes
Shape: Round
Color: Orange
