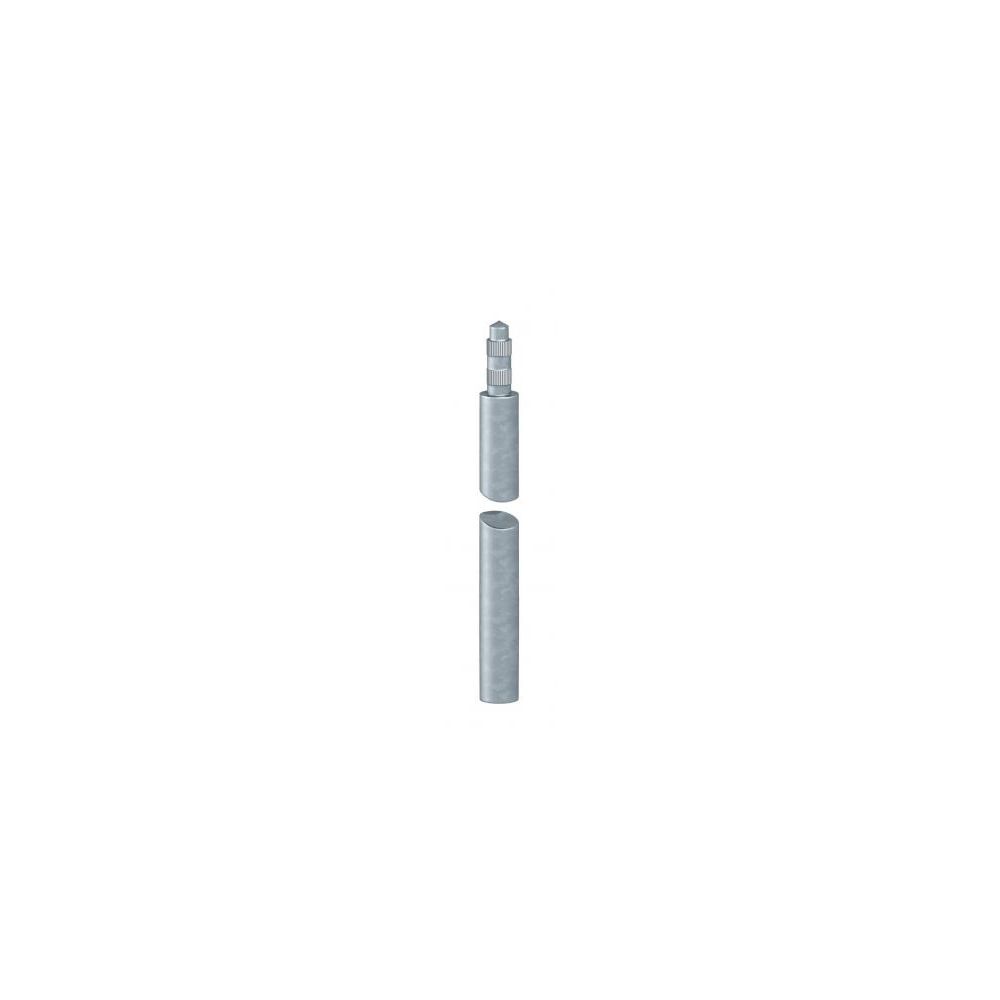

OBO Grounding Rod 1.5m 219 20 pcs FT
In stock
(see where)
SKU: M014105
Available in stock: 8 - the delivery time is 1 to 2 days.
For orders over stock - the delivery time is from 10 to 20 days.
21,56 BGN
-
+
Characteristics
Type of material
Steel
Dimensions (L × W × H)
1,5m
Length product mm
1500 mm
Warranty
2 years
Product category
C
Brand
OBO
Description
• high resistance to corrosion
• zinc coating 130 µm
• with pin and hole for sequential arrangement
• round pin with two notches
• compliant with the requirements of VDE 0185-305 (IEC 62305)
• short-circuit current Ik (50 Hz), duration 1 sec, max. temperature 300 °C: 7.9 kA
CO₂ footprint (GWP) from cradle to gate: 10.1948 kg CO₂e / 1 piece
Profile type: round, D = 20 mm
Outer diameter: 20 mm
Length: 1500 mm
Lightning current carrying capacity: H/100 kA
Material: Steel
Surface: Hot-dip galvanized
Dimensions: 1.5 m
Short-circuit current (50 Hz) (1 sec; ≤ 300 °C): 7.9 kA
