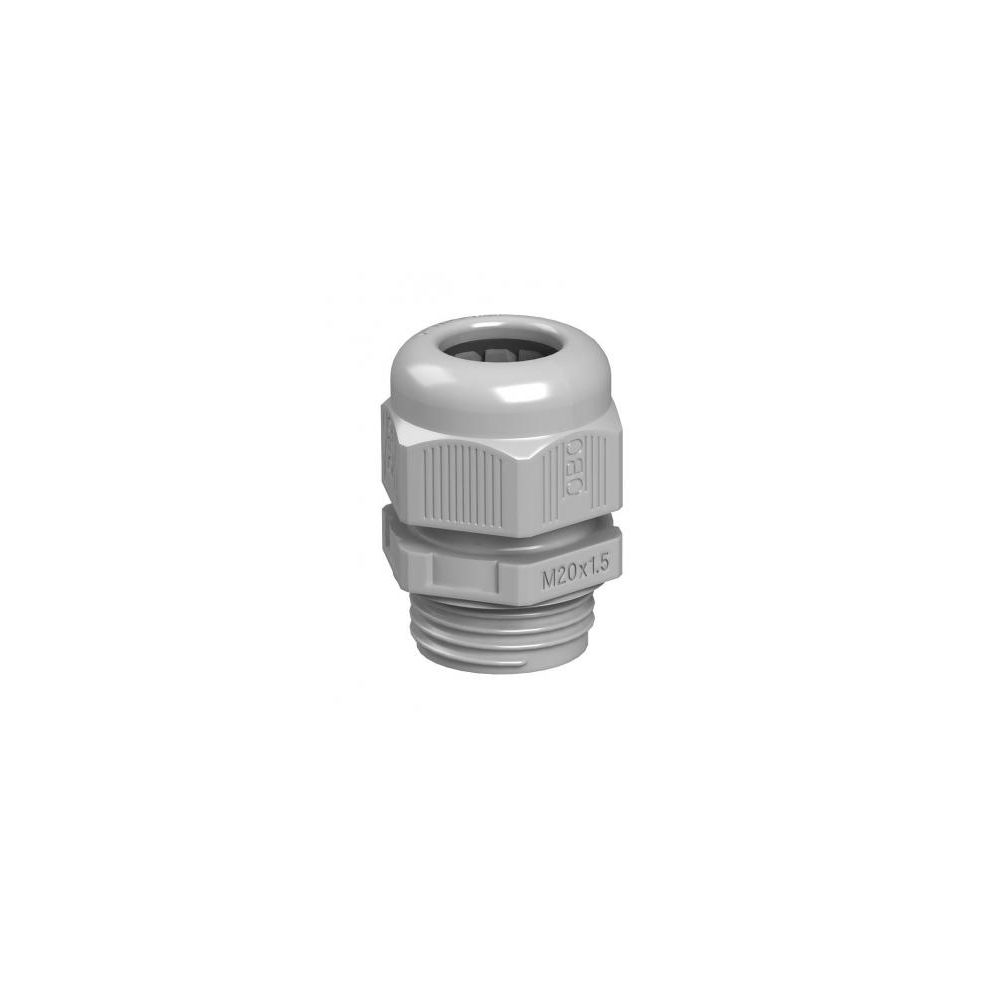

OBO GLAND + NUT M20

The fastest and most convenient way to ensure tightness and tensile strength of cables in junction and installation boxes is by using the V-TEC VM cable glands from OBO. With the integrated sealing lip and special lamellar design, a protection rating of IP68 is achieved. The tensile strength and sealing have been tested according to DIN EN 62444.

The thread can be either metric or PG – universally applicable. Once installed, the setup is permanent: an optimally selected thread with the correct pitch ensures long-lasting vibration resistance.

Application: from junction boxes in residential premises to distribution panels in industrial facilities.

Temperature range in the application area: -20°C to +65°C.

CO2 footprint (GWP) from cradle to gate: 0.0408 kg CO₂e / 1 piece
Halogen-free: yes
Explosion-proof: no
Type of sealing: Sealing ring
Thread length: 10 mm
For explosive atmosphere: No
For explosive gas atmosphere: No
For explosive dust atmosphere: No
Bend protection: no
Design: straight
Material: Polyamide
Non-flame-retardant material: VDE 0471/DIN 695 part 2-1, test temperature 650°C
Unstable torque: 3.8 Nm
Nominal thread size: 20
Cable strain relief: yes
Split gland: no
Dimension E: 27 mm
Max. length L: 30.5 mm
Min. length L: 23.5 mm
Wrench size: 24
Dimension L1: 9 mm
Dimension L2: 5 mm
Dimensions: M20
Thread: M20 x 1.5
With locknut: no
Flat cable connection: no
Thread system: metric
Protection rating: IP68
Thread pitch: 1.5 mm
Max. temperature range in application: 65 °C
Min. temperature range in application: -20 °C
Reinforced with glass fibers: no
Universal sealing: no
Sealing range D max.: 13 mm
Sealing range D min.: 6 mm
Impact resistant: no
Color: light gray; RAL 7035
Hexagon – angle size: 27 mm
