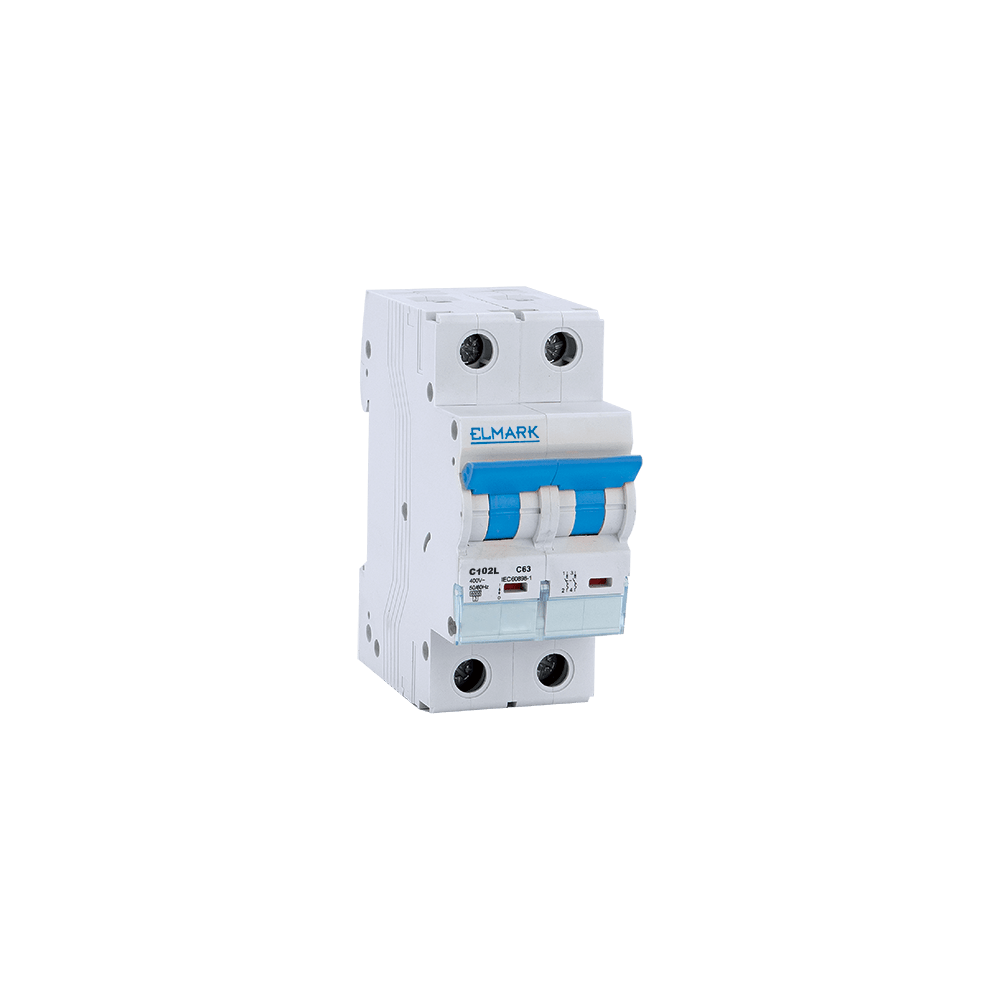

Miniature circuit breaker C102L 25A 2P 10kA Curve C
In stock
(see where)
SKU: 41208C
Available in stock: 7898 - the delivery time is 1 to 2 days.
For orders over stock - the delivery time is from 30 to 40 days.
BGN 13.02 /6,66 €
BGN 13.02 /6,66 €
-
+
Characteristics
Tripping curve
C
Rated current(A)
25 A
Rated voltage
230V 50/60Hz
Electrical wear resistance (number of cycles):
≥4000
Mechanical wear resistance (number of cycles)
≥20000
IP code
IP>20
Rated breaking capacity Ics
75% Icu
Isolating voltage
≥2000V, 1 min at impulse wave 1.2/50μs
Class of current limiting
3
Recommended conductor (mm²)
4
Breaking capacity (kA)
10
Number of poles
2P
Mounting
on DIN rail
Product category
A
Brand
ELMARK
