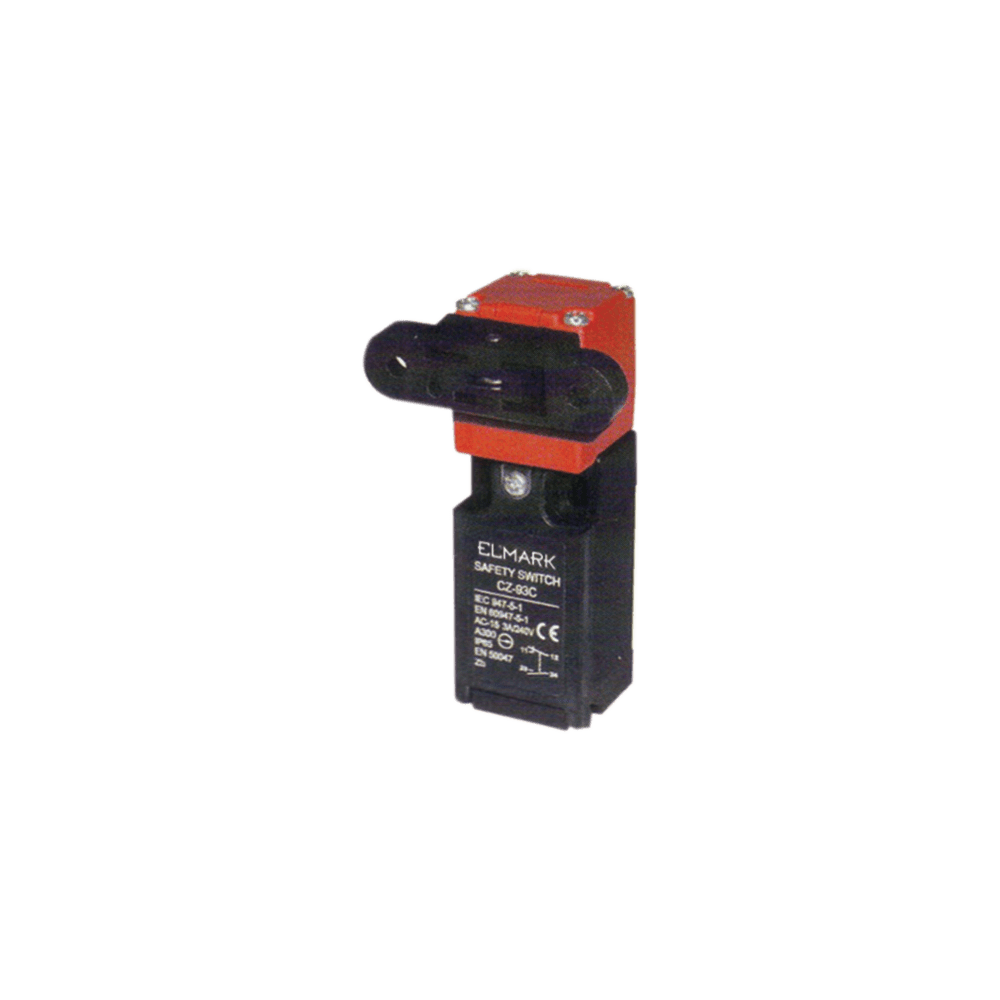

Limit switch CZ-93CPG03
In stock
(see where)
SKU: 46CZ13
Available in stock: 228
For orders over stock - the delivery time is from to days.
BGN 49.19
-
+
Characteristics
Type Product
Switch
Key type
CZ93-K3
Key Actuating
Adjustable
Power of starting (g)
147N
Power of release (g)
29.4N
Switching position
6 mm
General movement
28mm
Rated voltage
230VAC
IP code
IP65
Warranty
3+0 years
Active load (A)
10
Inductive load
3A
Brand
ELMARK
Description
Limit switches of the CZ 93 series are Safety Key Interlock Switches. They are used in object control systems with high safety requirements. The limit switch body is mounted to the fixed system component, while the safety key is mounted to the movable system component. System operation cannot start, unless a full interlocking is achieved. Safety key interlock switches can operate at up to 10A non-inductive resistance load, 3A lamp load and 5A inductive load. They have high operating accuracy at wide variety of speeds. These limit switches are available in two versions depending on the operating contacts number: 2NC and NO+NC
