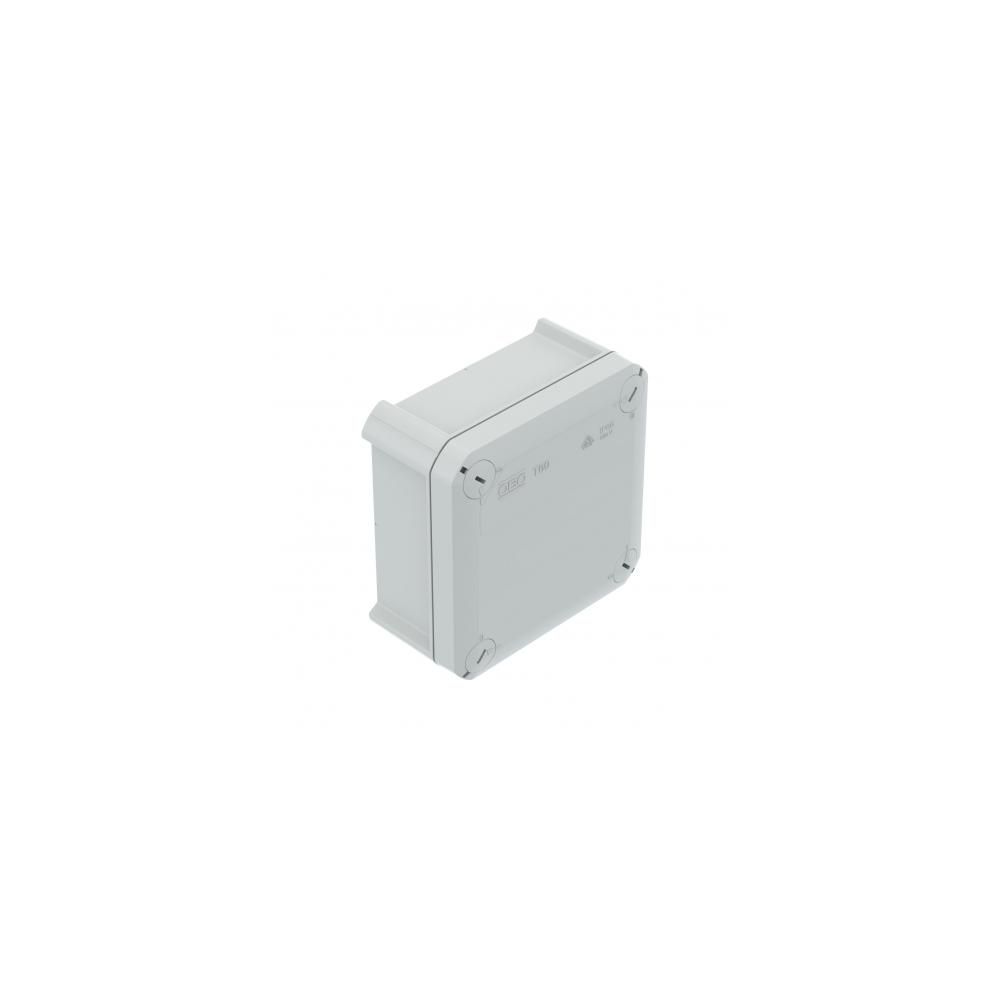

Junction box for connecting cables and conductors indoors and in protected outdoor areas. Square shape without cable entries. Suitable for wall and ceiling mounting; installation is done on a mounting plate. Can also be mounted internally and above corner domes. Lid with quick-lock mechanism and option for sealing. Made of halogen-free materials.
Junction box according to DIN EN 60670. Flame-retardant according to DIN EN 60695-2-11, test temperature 650 °C. Impact resistance IK08 according to DIN EN 50102.
CO₂ footprint (GWP) from cradle to gate: 0.5033 kg CO₂e / 1 piece
Halogen-free: Yes
Type of inlets: Cable
Mounting type: Wall/ceiling mounting
Type of incoming cables: Without signaling
Type of enclosure entry: No
Height: 57 mm
Length: 114 mm
Ex version: No
For hazardous area: No
For explosive gas atmosphere: No
For explosive dust atmosphere: No
Cover attachment: Screwed
Rear cable entry: Yes
Cable entries:
Without signaling
Covers: Opaque
Material: Polypropylene
Non-flame-propagating material: VDE 0471/DIN 695 Part 2-1, test temperature 750°C
Rated voltage: 500 V
Minimum conductor cross-section: 6 mm²
Supplied with accessories: No
Rated insulation voltage Ui: 500 V
Transparent cover: No
Dimensions: 114x114x57 mm
Sealable: Yes
Stackable: Yes
Shielded: No
With cover: Yes
Clear internal dimensions: 100x100x46 mm
IK protection code: IK08
Protection rating: IP66
Functional integrity retained: No
Max operating temperature: 60°C
Min operating temperature: -5°C
Glass-fiber reinforced: No
Weather-resistant: No
Shape: Square
Colour: Light grey; RAL 7035
Width: 114 mm
