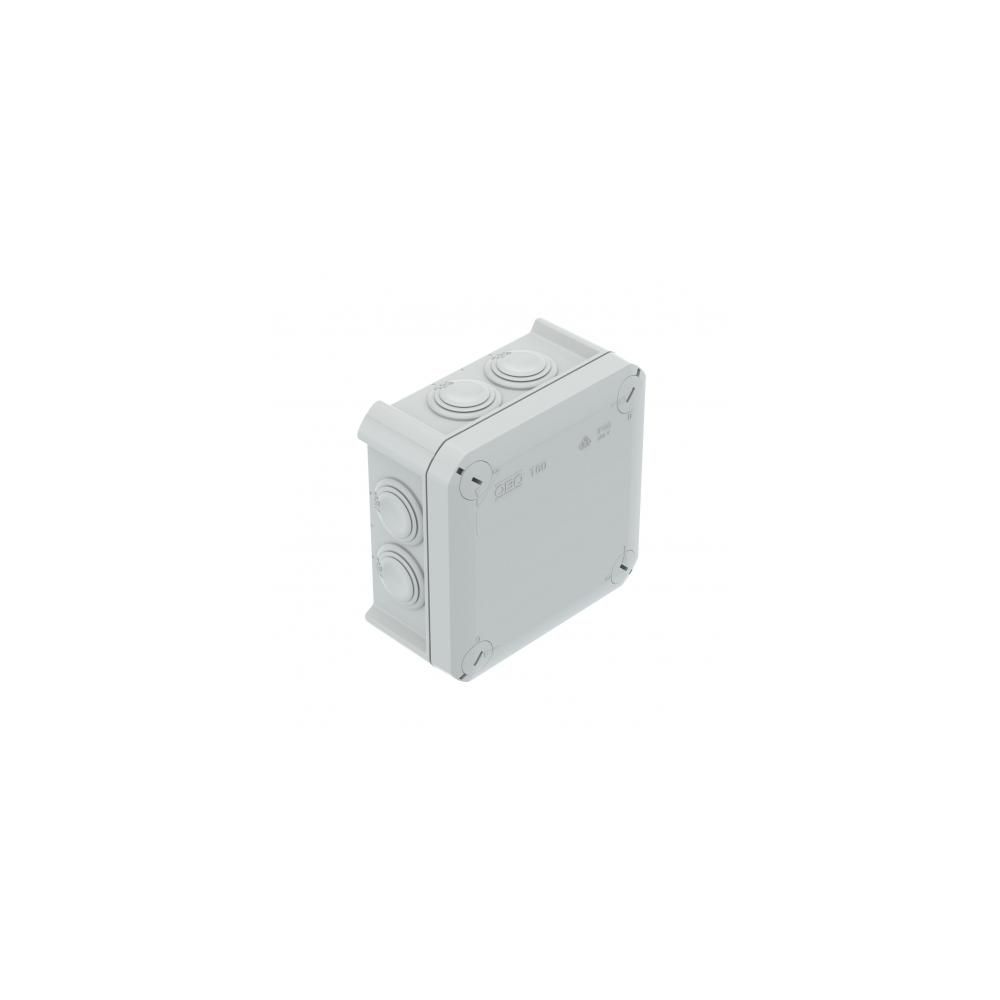

JUNCTION BOX T60 114x114x57 IP66

Junction box for connecting cables and wires indoors and in protected outdoor areas. Square shape with seals for wall penetrations and knockouts in the base. Suitable for wall and ceiling mounting, also possible to mount on a mounting plate. Equipped with internal fixing options and installation above corner domes. Cover with quick locking mechanism, with the possibility of sealing. Made from halogen-free materials. Junction box compliant with DIN EN 60670. Flame-retardant according to DIN EN 60695-2-11, test temperature 650 °C. Impact resistance IK07 according to DIN EN 50102.

CO2 footprint (GWP) from cradle to gate: 0.5155 kg CO₂e / 1 piece
Halogen-free: yes
Number of cable entry openings: 7
Type of entries: Cable
Type of incoming cables: Seal
Type of passing element in the box: Step membrane, for cutting
Height: 57 mm
Length: 114 mm
Ex-protection design: no
For explosive zone: No
For explosive gas zone: No
For explosive dust zone: No
Cover fastening: screwed
Cable entry at the back: yes
Cable entries: 7 x M25
Covers: opaque
Material: Polypropylene
Non-flammable material: VDE 0471 / DIN 695 part 2-1, test temperature 650 °C
Rated voltage: 500 V
Minimum nominal cross-section: 6 mm²
Equipment set: No
Design insulation voltage Ui: 500 V
Transparent cover: no
Dimensions: 114 x 114 x 57 mm
Sealable: yes
Stackable: yes
With shielding: no
With cover: yes
Clear internal dimensions: 100 x 100 x 48 mm
Impact protection rating (IK code): IK07
Protection rating: IP66
Functionality preservation: No
Operating temperature range max: 60 °C
Operating temperature range min: -5 °C
Reinforced with fiberglass: no
Weather resistance: no
Shape: square
Color: light grey; RAL 7035
Width: 114 mm
