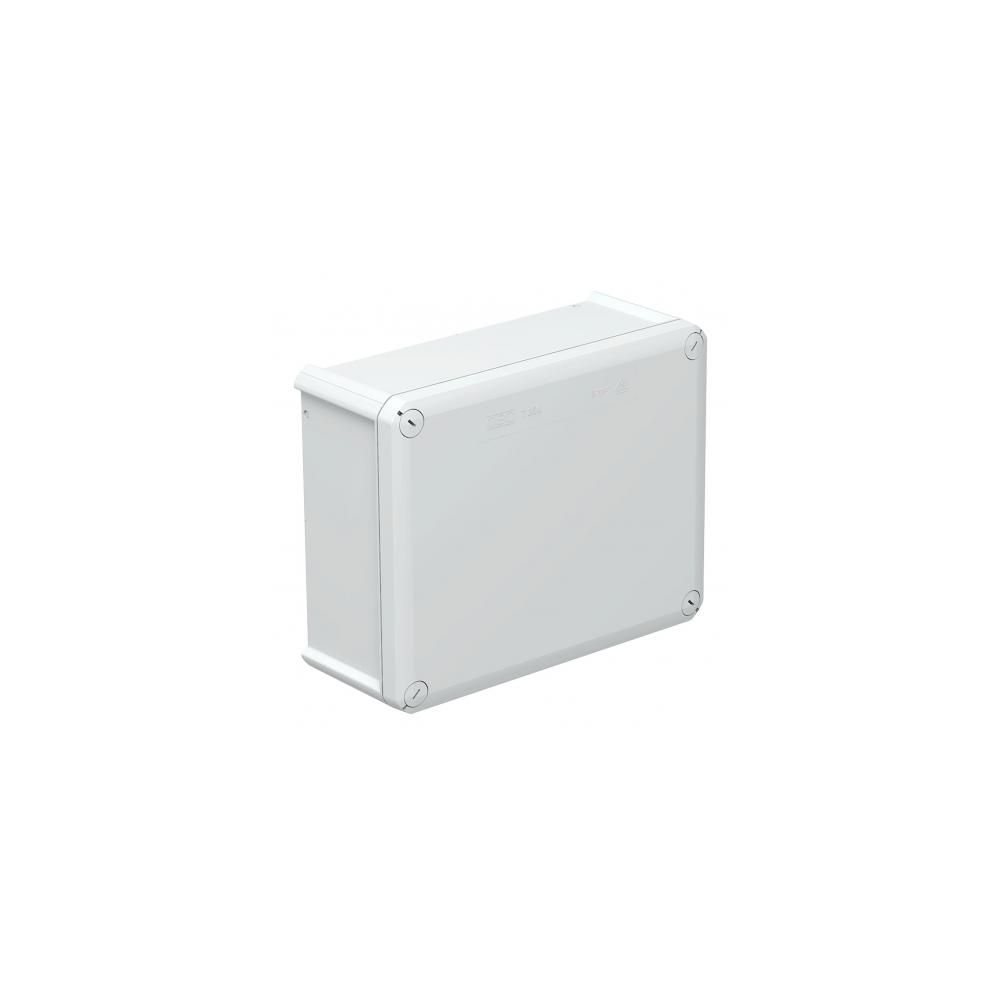

JUNCTION BOX T250 OE 240x190x95 IP66 WITHOUT ENTRIES
Available in stock: 23 - the delivery time is 1 to 2 days.
Junction box for connecting cables and conductors indoors and in protected outdoor areas. Rectangular shape without cable entries. Suitable for wall and ceiling mounting, mounting to a mounting plate, and via thread in the base. Possibility for internal fastening and mounting above corner domes. Cover with quick-lock mechanism and sealable option. Made of halogen-free materials.
Junction box in accordance with DIN EN 60670. Flame-retardant in accordance with DIN EN 60695-2-11, test temperature 650 °C. Impact resistance IK05 according to DIN EN 50102.
CO₂ footprint (GWP) from cradle to gate: 1.8041 kg CO₂e / per unit
Halogen-free: Yes
Type of inlets: Cable
Mounting type: Wall/ceiling mounting
Type of incoming cables: Without signaling
Type of enclosure gland: None
Height: 95 mm
Length: 240 mm
Ex version: No
For hazardous area: No
For gas explosive area: No
For dust explosive area: No
Lid fastening: Screwed
Rear cable entry: Yes
Cable entries:
Without signaling
Covers: Opaque
Material: Polypropylene, glass fiber reinforced
Non-flammable material: VDE 0471 / DIN 695 part 2-1, test temperature 750°C
Rated voltage: 500 V
Minimum rated cross-section: 25 mm²
Supplied with accessories: No
Rated insulation voltage (Ui): 500 V
Transparent cover: No
Dimensions: 240 x 190 x 95 mm
Sealable: Yes
Stackable: Yes
With shielding: No
With cover: Yes
Clear internal dimensions: 225 x 173 x 86 mm
IK protection rating: IK05
Degree of protection (IP): IP66
Maintains functionality: No
Maximum operating temperature: 60 °C
Minimum operating temperature: -5 °C
Glass fiber reinforced: Yes
Weather resistant: No
Shape: Rectangular
Color: Light grey; RAL 7035
Width: 190 mm
