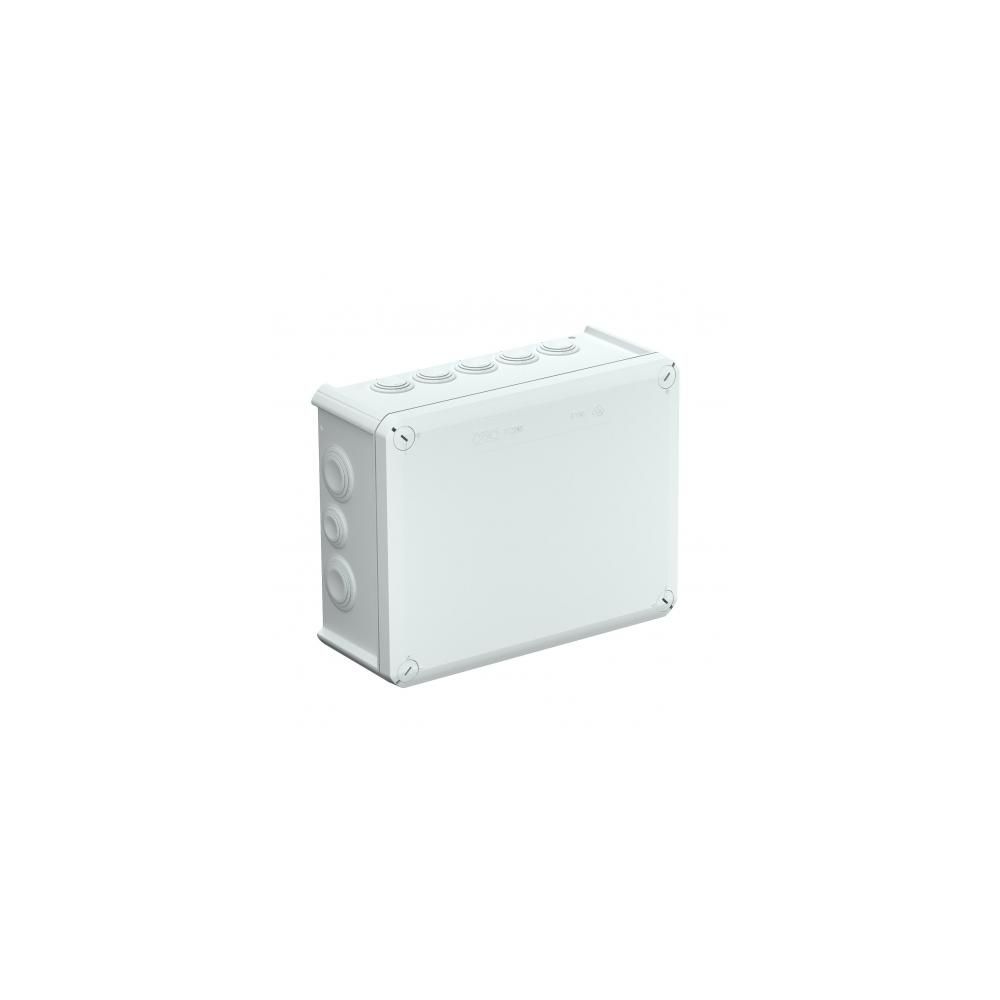

JUNCTION BOX T250 240x190x95 IP66
Available in stock: 6 - the delivery time is 1 to 2 days.
Junction box for connecting cables and conductors indoors and in protected outdoor areas. Rectangular shape with sealings for puncturing in the walls and break-out openings at the base. Suitable for wall and ceiling mounting, with possible mounting on a mounting plate and by means of a thread at the base. With the possibility of internal fastening and mounting over corner domes. Cover with quick locking mechanism, with the possibility of sealing. Made from halogen-free, UV-stabilized materials. Junction box according to DIN EN 60670. Flame-retardant according to DIN EN 60695-2-11, test temperature 650 °C. Impact resistance IK05 according to DIN EN 50102.
CO2 footprint (GWP) from cradle to gate: 1.8417 kg CO₂e / 1 piece
Halogen-free: yes
Number of cable entry openings: 16
Type of entries: Cable
Type of mounting: Wall/ceiling mounting
Type of incoming cables: Sealing
Type of box entry element: Step membrane, for cutting
Height: 95 mm
Length: 240 mm
Ex version: no
For explosive area: No
For explosive gas area: No
For explosive dust area: No
Cover fastening: Screwed
Cable entry at the back: yes
Cable entries:
9 x M25
7 x M32
Covers: Opaque
Material: Polypropylene reinforced with glass fiber
Non-flammable material: VDE 0471/DIN 695 part 2-1, test temperature 650°C
Rated voltage: 500 V
Minimum rated cross-section: 25 mm²
Equipment included: No
Insulation rated voltage Ui: 500 V
Transparent cover: no
Dimensions: 240x190x95 mm
Sealability: yes
Stackability: yes
With shielding: no
With cover: yes
Clear internal dimensions: 225x173x86 mm
Impact protection rating IK code: IK05
Protection rating: IP66
Functionality retention: No
Maximum operating temperature range: 60 °C
Minimum operating temperature range: -5 °C
Reinforced with glass fibers: yes
Weather resistance: no
Shape: Rectangular
Color: Light gray; RAL 7035
Width: 190 mm
