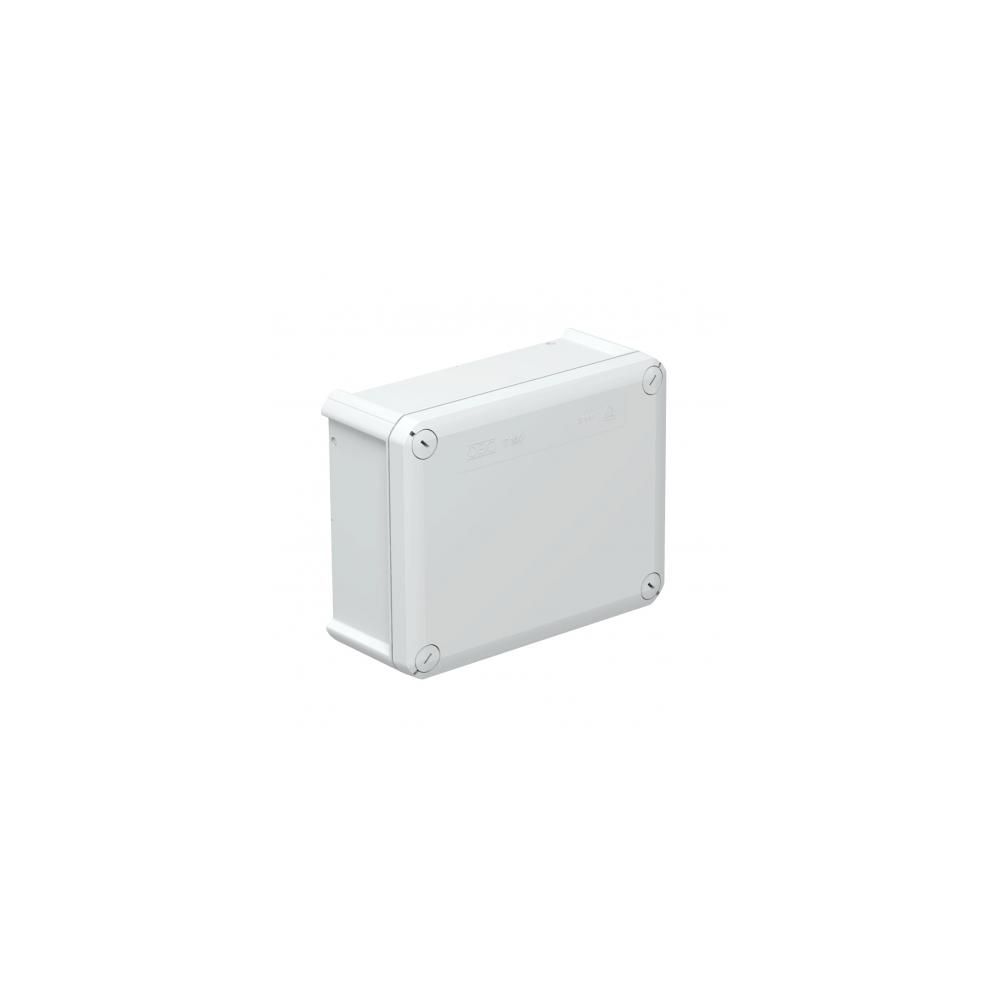

JUNCTION BOX T160 OE 190x150x77 IP66 WITHOUT CABLE ENTRIES

Junction box for connecting cables and wires indoors and in protected outdoor areas. Rectangular shape without cable entries. Suitable for wall/ceiling mounting and for mounting on metal mounting plates, with the possibility of internal fastening and installation above corner domes. Cover with quick-locking mechanism and option for sealing. Made of halogen-free materials.

Junction box in accordance with DIN EN 60670. Flame-retardant in accordance with DIN EN 60695-2-11, test temperature 650 °C. Impact resistance IK04 according to DIN EN 50102.

CO₂ Footprint (GWP) from cradle to gate: 1.1708 kg CO₂e / per unit
Halogen-free: Yes
Type of entries: Cable
Mounting type: Wall/ceiling mounting
Type of incoming cables: Without signaling
Type of box feed-through element: None
Height: 77 mm
Length: 190 mm
Ex-version: No
For hazardous area: No
For explosive gas zone: No
For explosive dust zone: No
Cover fastening: Screwed
Rear cable entry: Yes
Cable entries: Without signaling
Covers: Opaque
Material: Polypropylene, glass fiber reinforced
Non-flammable material: VDE 0471/DIN 695 Part 2-1, test temperature 750°C
Rated voltage: 500 V
Minimum rated cross-section: 16 mm²
Supplied with accessories: No
Design insulation voltage Ui: 500 V
Transparent cover: No
Dimensions: 190x150x77 mm
Sealability: Yes
Stackable: Yes
With shielding: No
With cover: Yes
Clear internal dimensions: 176x135x67 mm
Protection rating IK code: IK05
Degree of protection: IP66
Functionality retention: No
Maximum operating temperature: 60 °C
Minimum operating temperature: -5 °C
Glass fiber reinforced: Yes
Weather resistant: No
Shape: Rectangular
Color: Light grey; RAL 7035
Width: 150 mm
