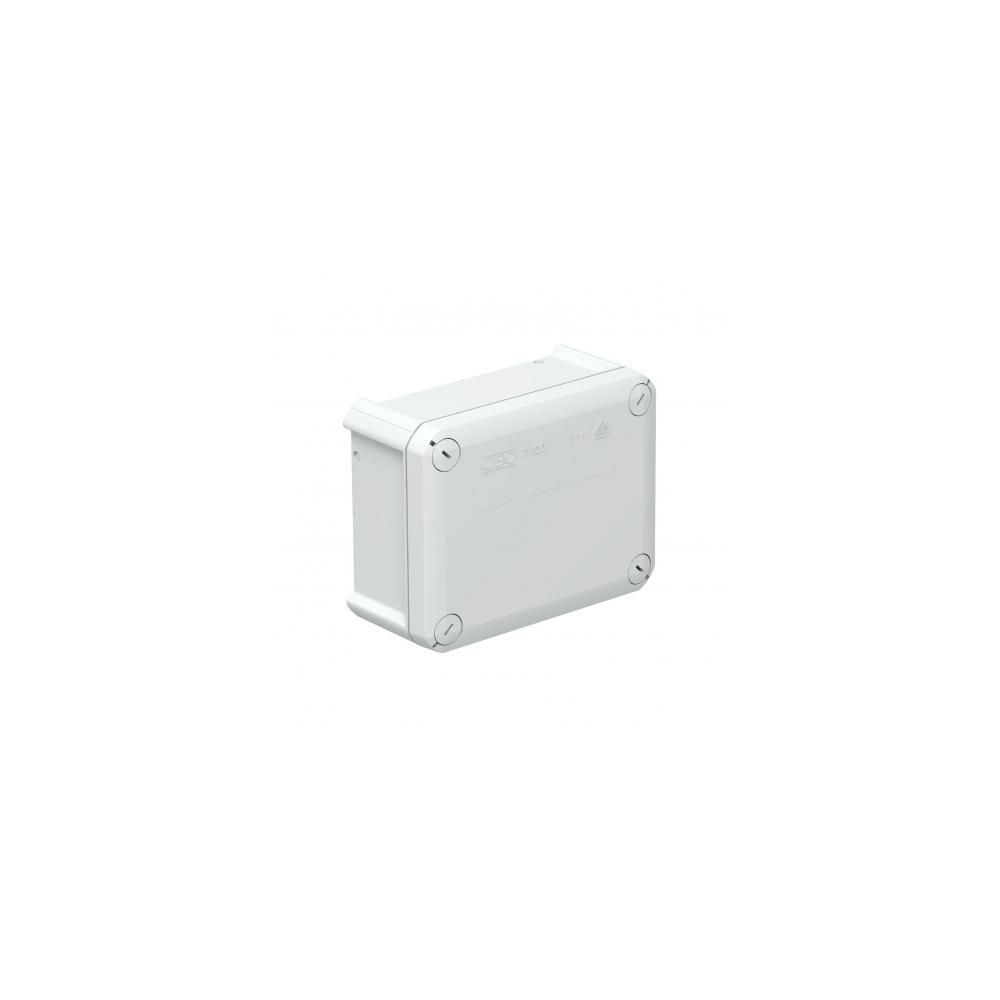

JUNCTION BOX T160 190x150x77 IP66

Junction box for connecting cables and conductors indoors and in protected outdoor areas. Rectangular shape without cable entries. Suitable for wall and ceiling mounting; mounting on a mounting plate is also possible. Can be fastened from the inside. The cover features quick locking and can be sealed. Made of halogen-free, UV-stabilized materials.

Junction box in accordance with DIN EN 60670. Flame-retardant according to DIN EN 60695-2-11, test temperature 650 °C. Impact resistance IK07 in accordance with DIN EN 50102.

CO₂ footprint (GWP) from cradle to gate: 0.6772 kg CO₂e / per unit
Halogen-free: Yes
Type of entries: Cable
Mounting type: Wall/ceiling mounting
Type of incoming cables: Without signaling
Type of through element in the box: No
Height: 67 mm
Length: 150 mm
Ex version: No
For hazardous area: No
For hazardous gas zone: No
For hazardous dust zone: No
Cover fastening: Screwed
Rear cable entry: Yes
Cable entries: Without signaling
Cover: Opaque
Material: Polypropylene
Non-flame propagating material: VDE 0471 / DIN 695 Part 2-1, test temperature 750°C
Rated voltage: 500 V
Minimum nominal cross-section: 10 mm²
Equipped: No
Rated insulation voltage Ui: 500 V
Transparent cover: No
Dimensions: 150 x 116 x 67 mm
Sealable: Yes
Stackable: Yes
With shielding: No
With cover: Yes
Clear internal dimensions: 136 x 102 x 57 mm
IK impact resistance rating: IK07
Degree of protection (IP): IP66
Function maintenance: No
Maximum operating temperature: 60°C
Minimum operating temperature: -5°C
Weather resistant: No
Shape: Rectangular
Color: Light grey; RAL 7035
Width: 116 mm
