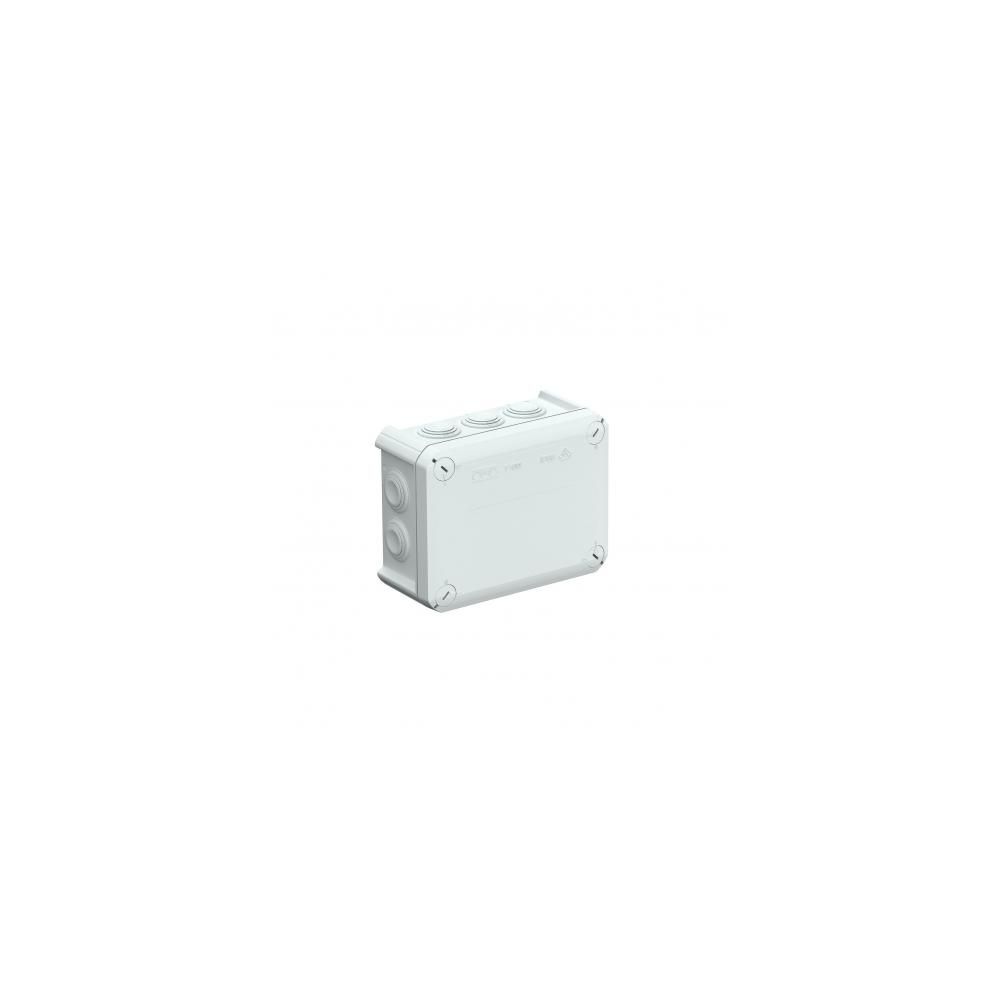

JUNCTION BOX T100 150x116x67 IP66
Available in stock: 51 - the delivery time is 1 to 2 days.
Junction box for connecting cables and conductors indoors and in protected outdoor areas. Rectangular shape with wall grommets and knock-out openings in the base. Suitable for wall and ceiling mounting; installation is on a mounting plate. Allows for internal fastening and installation above corner domes. Cover with quick-locking mechanism, sealable. Made of halogen-free materials.
Junction box according to DIN EN 60670. Flame-retardant according to DIN EN 60695-2-11, test temperature 650 °C. Impact resistance IK07 according to DIN EN 50102.
CO₂ отпечатък (GWP) от люлка до портата: 0.6856 kg CO₂e / 1 piece
Halogen-free: Yes
Number of cable entry openings: 10
Type of entries: Cable
Mounting type: Wall/ceiling mounting
Type of cable entry: Grommet
Type of box entry element: Stepped membrane, to be cut
Height: 67 mm
Length: 150 mm
Ex-rated version: No
For explosive area: No
For explosive gas zone: No
For explosive dust zone: No
Cover fastening: Screwed
Rear cable entry: Yes
Cable entries: 10 x M25
Covers: Opaque
Material: Polypropylene
Non-flame-propagating material: VDE 0471 / DIN 695 Part 2-1, test temperature 650°C
Rated voltage: 500 V
Minimum nominal cross-section: 10 mm²
Supplied accessories: No
Rated insulation voltage Ui: 500 V
Transparent cover: No
Dimensions: 150 x 116 x 67 mm
Tamper-proof (sealable): Yes
Stackable: Yes
Shielded: No
With cover: Yes
Internal usable dimensions: 136 x 102 x 57 mm
Impact protection rating (IK code): IK07
Protection rating: IP66
Function maintenance: No
Max. operating temperature: 60 °C
Min. operating temperature: -5 °C
Glass fiber reinforced: No
Weather-resistant: No
Shape: Rectangular
Color: Light grey; RAL 7035
