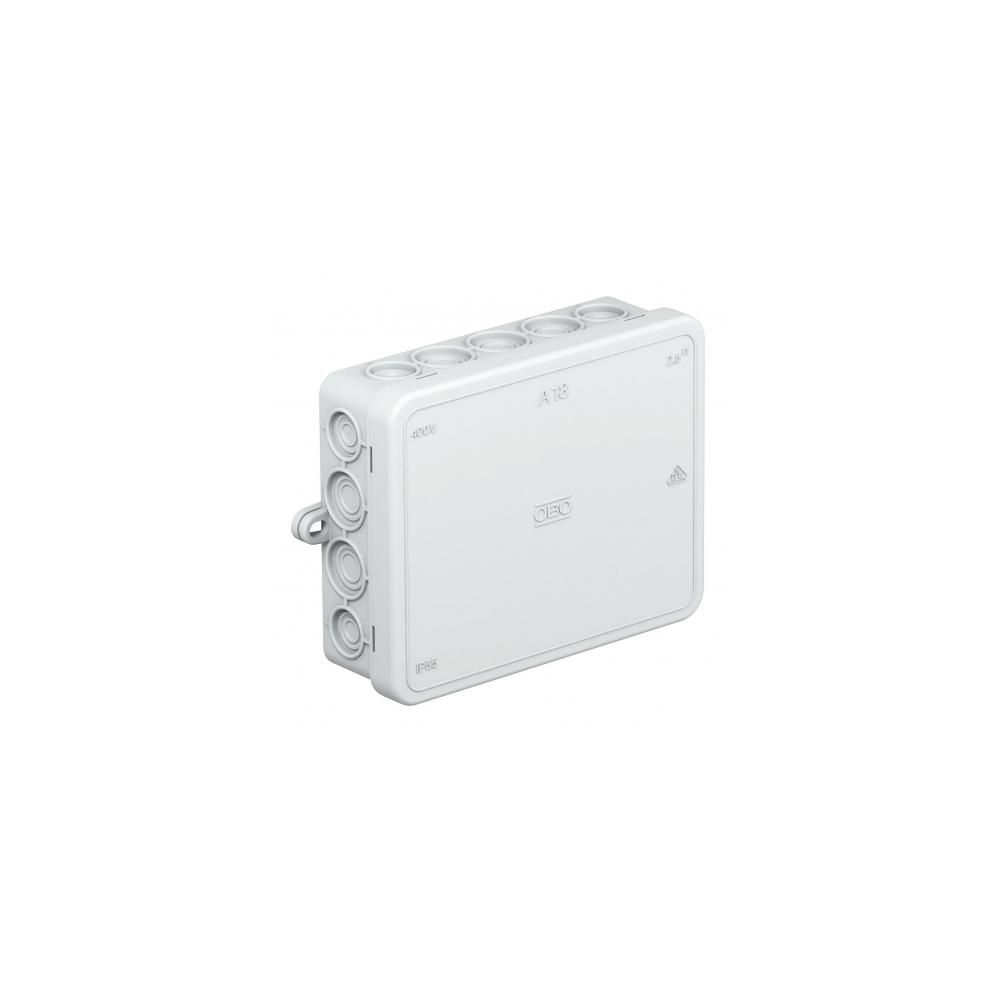

JUNCTION BOX A18 125x100x38 IP55
Available in stock: 232 - the delivery time is 1 to 2 days.
Protection class: IP55, rated voltage: 690 V, rated cross-section: 2.5 mm²
10 cable entries with a diameter of 5–14 mm
8 cable entries with a diameter of 5–11 mm
Pressure cover.
Dimensions: 125 x 100 x 40 mm
Internal clearance dimensions: 115 x 90 x 35 mm
1 cutting tool per 10 boxes included.
CO₂ footprint (GWP) from cradle to gate: 0.2099 kg CO₂e / per unit
Halogen-free: Yes
Number of cable entries: 18
Type of entries: Cable
Mounting type: Wall/ceiling mounting
Type of incoming cables: Cable
Type of box entry element: Pre-cut openings
Height: 40 mm
Length: 125 mm
Ex version: No
For explosive areas: No
For explosive gas areas: No
For explosive dust areas: No
Cover fastening: Snap-on
Junction box cover type: Solid cover
Rear cable entry: No
Cable entries:
– 10 entries for cables Ø 5–14 mm
– 8 entries for cables Ø 5–11 mm
Covers: Opaque
Max. conductor cross-section: 2.5 mm²
Material: Polyethylene
Non-flame propagating material: VDE 0471 / DIN 695 Part 2-1, test temperature 650°C
Rated voltage: 690 V
Min. conductor cross-section: 2.5 mm²
Included accessories: None
Rated insulation voltage Ui: 690 V
Transparent cover: No
Dimensions: 125 x 100 x 38 mm
Tamper-proof option: No
Stackable: Yes
With shielding: No
With cover: Yes
Internal usable dimensions: 115 x 90 x 35 mm
Degree of protection: IP55
Functionality retention: No
Max. operating temperature: 45 °C
Min. operating temperature: -5 °C
Weather resistant: No
Shape: Square
Color: Light grey; RAL 7035
Width: 100 mm
