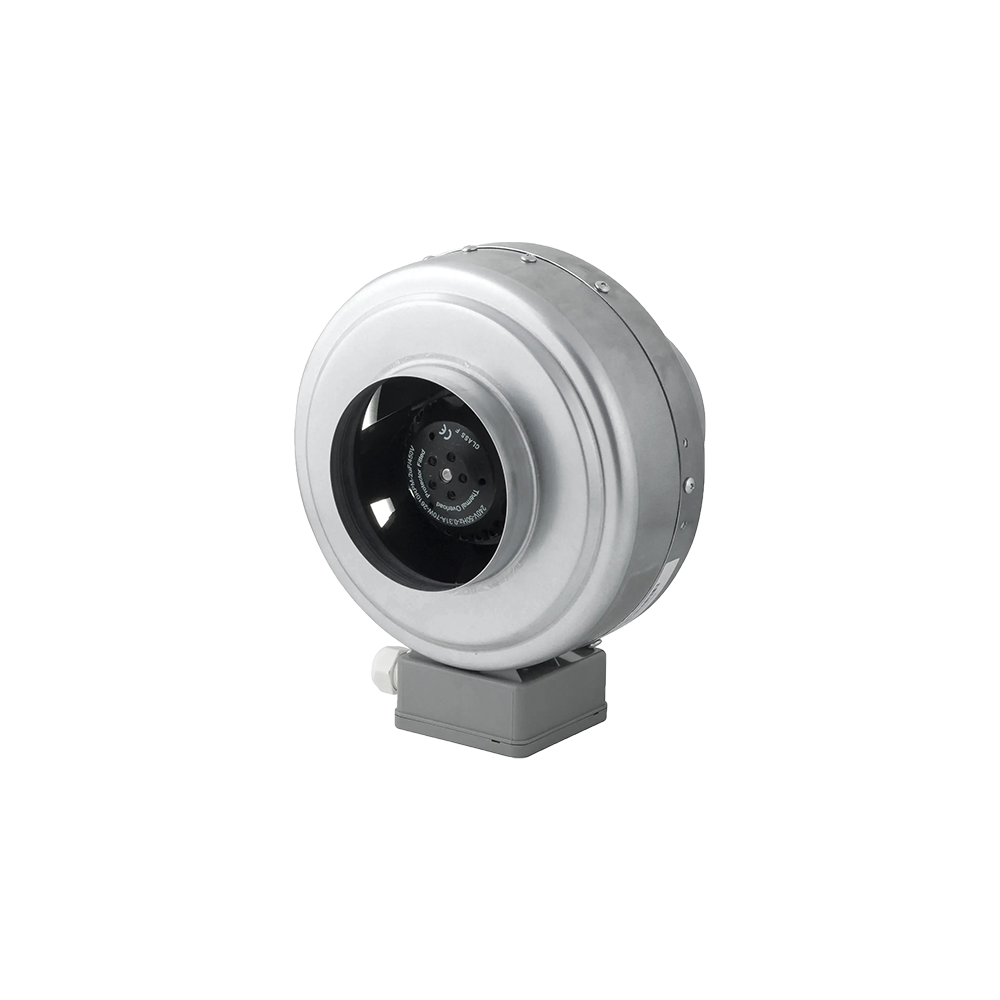

EL01-139 industrial duct fan D315
In stock
(see where)
SKU: 500209
Available in stock: 17 - the delivery time is 1 to 2 days.
For orders over stock - the delivery time is from 30 to 40 days.
€414.15
-
+
Characteristics
Rated voltage
220-240V / 50Hz
Temperature range
-25°C +60°C
Diameter
315mm
Power
215
Revolutions per minute
2550
Maximum air capacity
1440 m3/h
Noise level
70 dB
Color
Silver
Type of material
Tinned plate
Net weight
6.8kg
Dimensions (L × W × H)
280x401mm
Warranty
3 years
Product category
B
Brand
ELMARK
Description
AREAS OF APPLICATION:
• Supply and exhaust ventilation systems for commercial, office and other public or industrial premises.
OPTIONS:
• Compatible with 315mm PVC or flexible air ducts
DESIGN:
• The fan casing is made of tinned plate
SPEED CONTROL:
• To optimize the work of an engine there is a possibility to use the speed controller.
• Several fans may be connected to one speed controller provided that the total power and operating current do not exceed the rated speed controller parameters.
MOUNTING:
• The fan is powered through the external terminal box.
