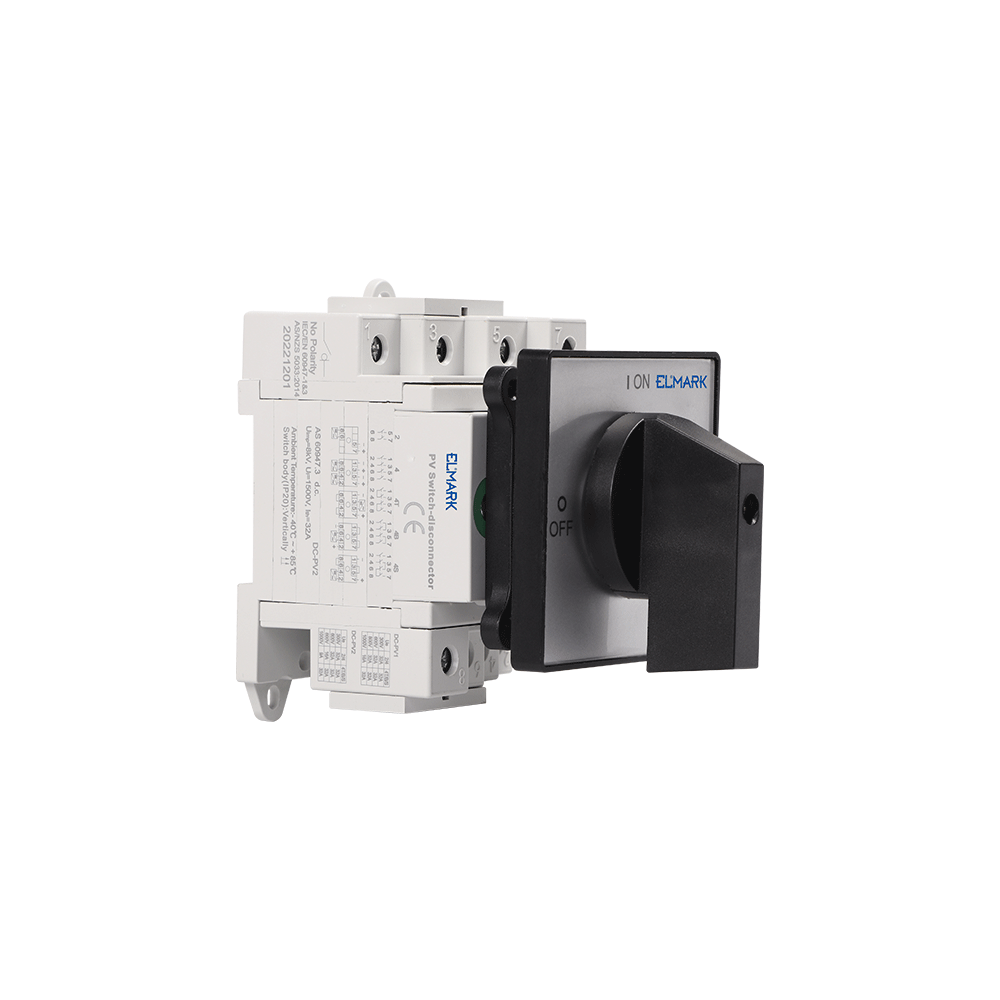

EL-DC 4P/32A DC isolator -2 strings
In stock
(see where)
SKU: 98SOL4P32F/DC
Available in stock: 368 - the delivery time is 1 to 2 days.
For orders over stock - the delivery time is from 30 to 40 days.
18,45 €
-
+
Characteristics
Rated Insulation Voltage
1500V
Rated Impulse Wthstnd Volt
8000V
Number of poles
4P
Overvoltage category
III
Mechanical Durability
10000 cycles
Mounting
Single hole
Rated current(A)
32A
Pollution degree
2
Temperature range
-40°C +70°C
Dimension
60.2x94.9x64.8mm
IP code
IP66
Warranty
3+2 years
Product category
C
Brand
ELMARK
Description
APPLICATION
The DC switch is mounted between the solar panels and the inverter and is intended to isolate the PV array during installation or subsequent maintenance.
Knob position: OFF at 12 hr, ON at 3 hr, C type
